What is SkySound?
SkySound is the drone equipped with a camera/jimbal, a searchlight, a loudspeaker and an amplifier, so it can broadcast the situation of the site on video. HD Video can be received through LTE communication ( or Wi-Fi), and audio and real-time microphone broadcasting is possible. Ground Control System (GCS) is equipped with QGoundControl, which controls drone flights and provides broadcast-related functions for easy broadcasting. The broadcast drone flies in a wide range of areas and can be used for disaster and fire evacuation, warning broadcasts at sea, highway accident guidance, and bird control.

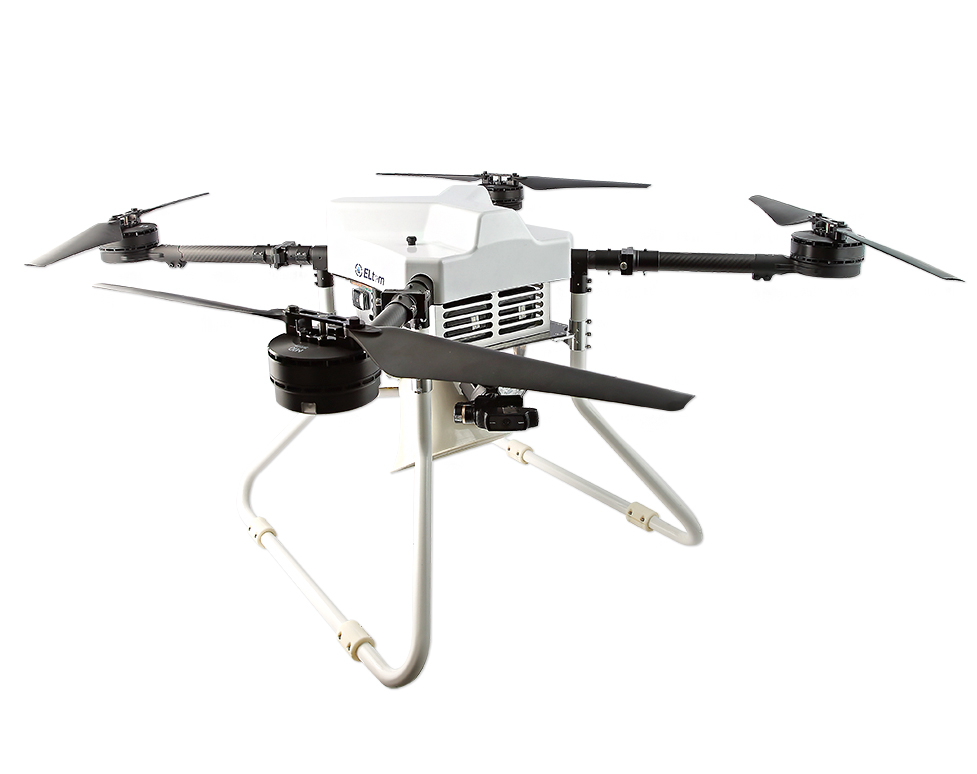

Drone with a Loudspeaker, a Camera and a Searchlight
Main Function
– Drone control, Mission control
– On-site video reception / recording
– Sound source playback and microphone broadcasting
– LED searchlight enables night flight.
– Automatically return when battery is low and communication is lost
– Setting flight altitude, flight radius limits and flight limits
– Network-based communication with Companion Computer
View the Products

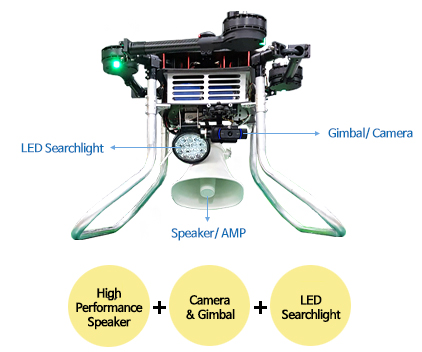

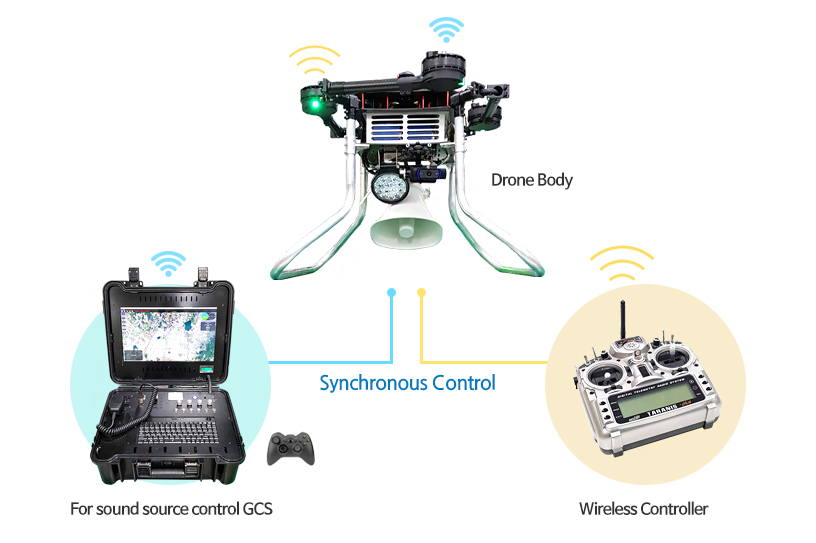

Components of a SkySound
Product Composition | Mission Equipment Composition |
---|---|
|
|
Specifications of Drone
Items | Specifications |
Dimensions | 1900 × 600 × 1200mm |
Weight | 17kg |
Control System | PixHawk / Companion Computer |
Communication | Radio Telemetry / LTE or WIFI |
Power Source | Lithium Polymer Battery |
Driving Voltage | 44.4VDC (36 ~ 50.4VDC) |
Thrust System | Quad-Rotor / BLDC Motor |
Max.Speed | 60 km/h |
Max. Climbing/Descending Speed | 18/14 km/h |
Cruising Speed | 20 km/h |
Wind Resistance | 36 km/h |
Hovering Accuracy | Ver. 0.5m / 1.5m |
Flight Duration | 30 minute (22,000mAh × 2) |
Flight Distance (Radio) | Within 2km |
Flight Distance (LTE) | 5km ~ 10km |
Specifications of Mission Equipment
Items | Specifications | |
Gimbal | PAN : ±170° | |
Tilt : -180° ~ +90° | ||
Roll : ±45° | ||
Camera | Resolution : 1920 × 1080 Full HD | |
Max. 30fps | ||
Network Streaming(RTSP) | ||
Resolution varies according to network conditions | ||
LED Searchlight | White LED 70W | |
Directivity 30° | ||
Front Reinforced Plastic, Rear Aluminum Housing | ||
Loudspeaker | Sound Pressure Level: 115dBA(1m Front) | |
Embedded AMP, 20W |

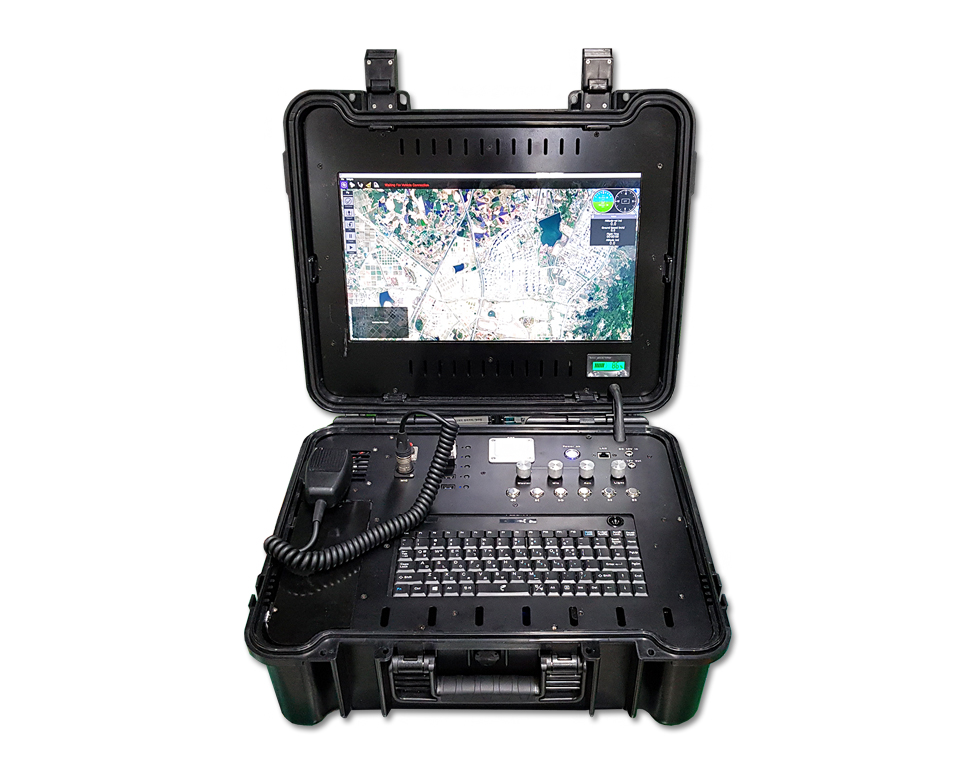

GCS(Ground Control Station)
Functions of GCS
– GroundControl or MissionPlanner
– Display Flight Map and Flight Information
– FPV Real-time video display
– WayPoint Input / Mission
– Move to Ralley Point
– Embedded GPS / Automatic location transfer
– Maneuvering the drone using a joystick
– Battery Indicator
– Broadcasting Control(Audio File, Mic)
Specifications of GCS
– Size : 518×430×242mm
– weight : 16kg
– Battery usage time : 6 hours
– Monitor: 17.3 inches, 1920×1080, 400cd/m2
– Intel Core 6th Gen i5/8GB RAM/256GB SSD
– Four USB Ports, Keyboard & Trackball, Joystick
Functions of GCS |
– GroundControl or MissionPlanner – Display Flight Map and Flight Information – FPV Real-time video display – WayPoint Input / Mission – Move to Ralley Point – Embedded GPS / Automatic location transfer – Maneuvering the drone using a joystick – Battery Indicator – Broadcasting Control(Audio File, Mic) |
Specifications of GCS |
– Size : 518×430×242mm – weight : 16kg – Battery usage time : 6 hours – Monitor: 17.3 inches, 1920×1080, 400cd/m2 – Intel Core 6th Gen i5/8GB RAM/256GB SSD – Four USB Ports, Keyboard & Trackball, Joystick |

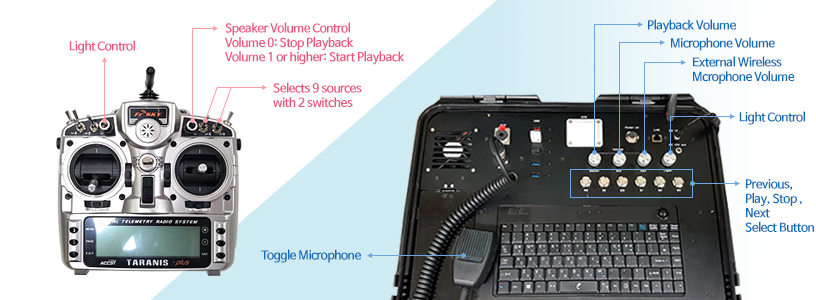

Control of Lighting & Speaker
Control by Wireless Remote Controlller | Control by GCS |
---|---|
|
|
